update/VertexFeatured

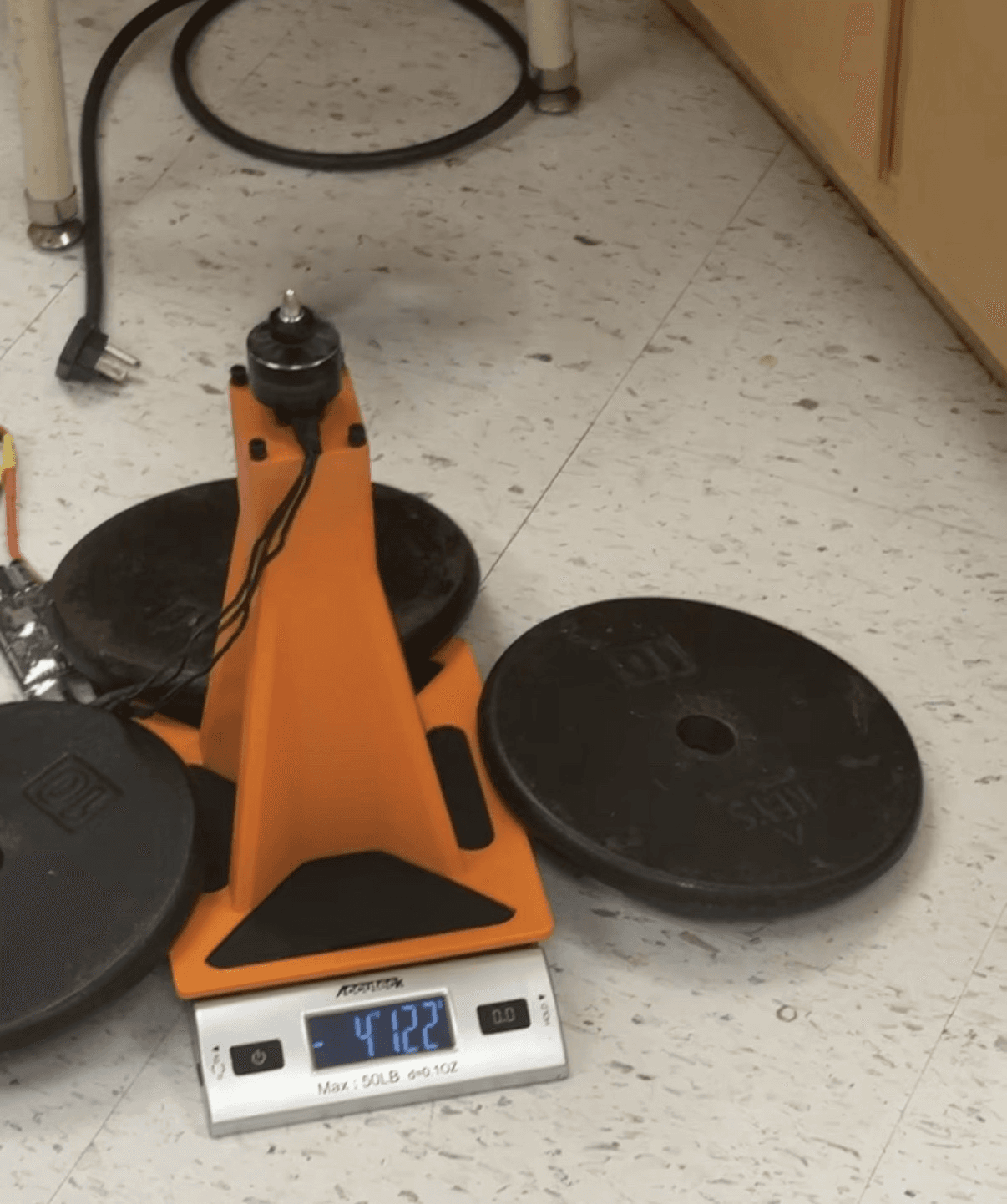

Motor Thrust Testing
A test with a 3115 900KV motor and 13 x 4.5 prop recorded 4.2 kg of peak thrust. A motor failed during a high-power run, which showed where the thermal and power limits were.
Development log
Vertex development updates
Build notes from Pulse One covering Vertex prototype changes, bench tests, simulation work, and development milestones.
Development documentation · No live data
milestone/Vertex
We raised over $1,200
By February 23, the early campaign had raised more than $1,200 for prototype work.
update/Vertex

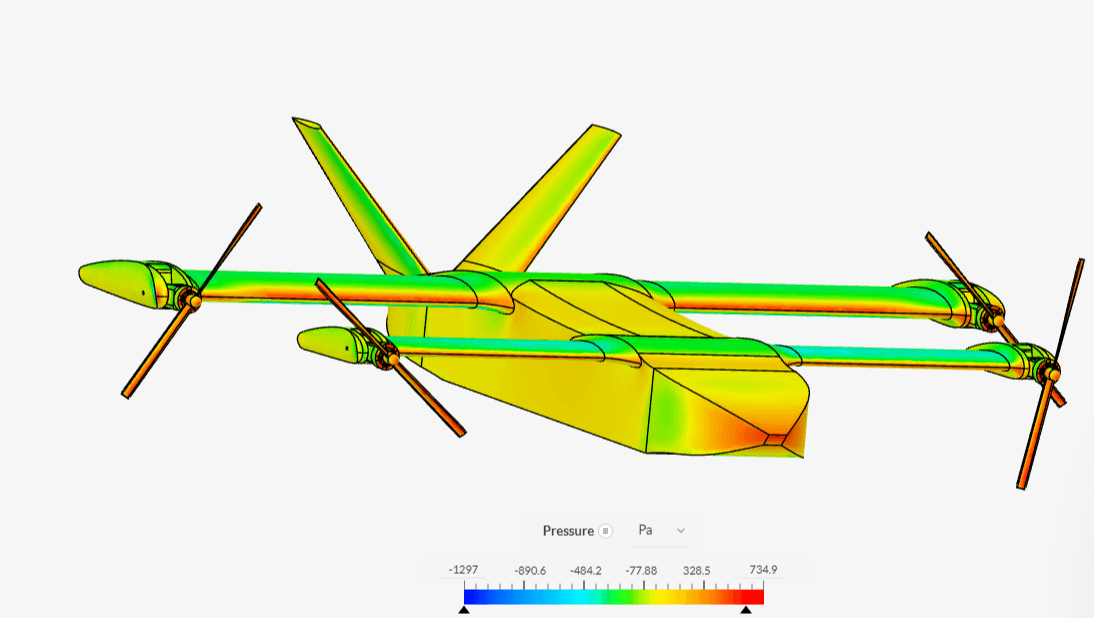

Wind Tunnel Testing & CFD Results
Initial CFD work measured lift at 30 m/s and showed more lift than the target condition. The result is being used to adjust wing angle of attack.
update/Vertex

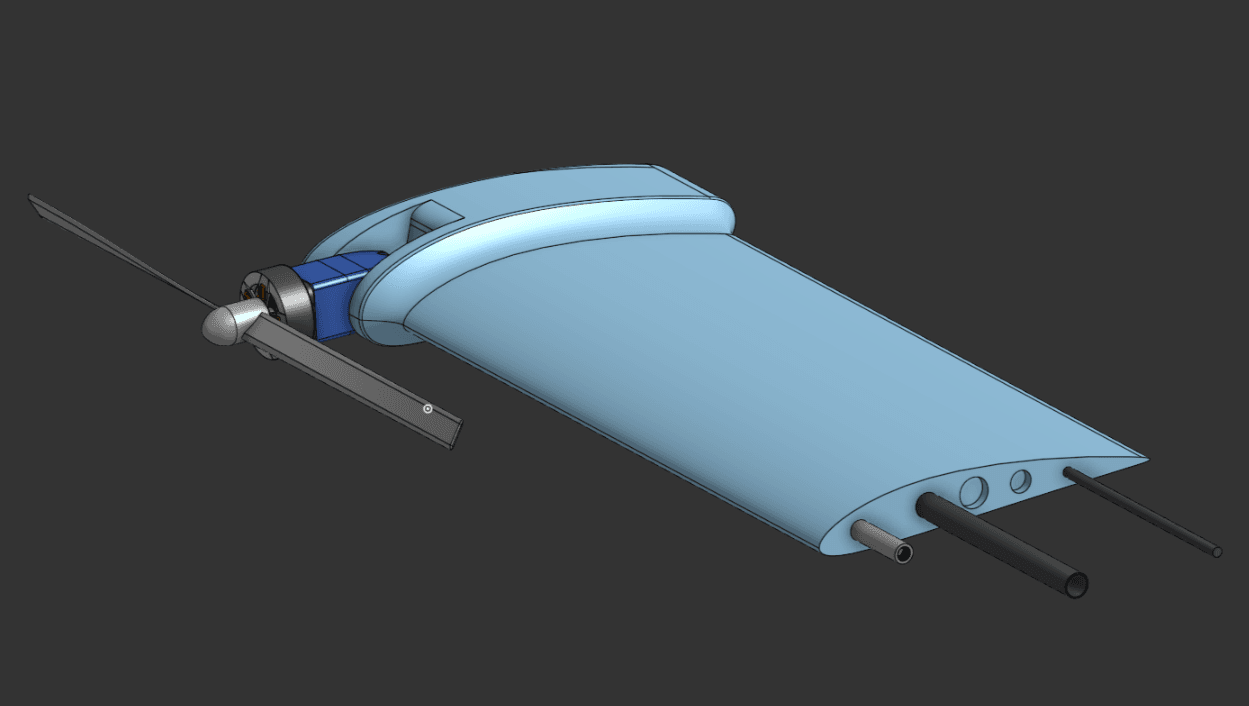

Mechanism Overhaul
The tilt mechanism changed from a multi-stage geared assembly to a direct-drive design. The new layout has more available torque, fewer parts, and easier service access.
